S125 Engine

IAME S125 Engine

The newly engineered IAME S125, single-cylinder, 125cc two-stroke, water-cooled engine is designed specifically for Karting.

The project is conceived to combine the ease of use of electric started engines with the philosophy and technical solutions shared with high-end racing engines.

The performance level meets nowadays Drivers requirements and the power curve is designed to provide strength yet from the lower revs.

All such is achieved with finest engineering and without the need of an exhaust valve, to preserve ease of use and low maintenance.

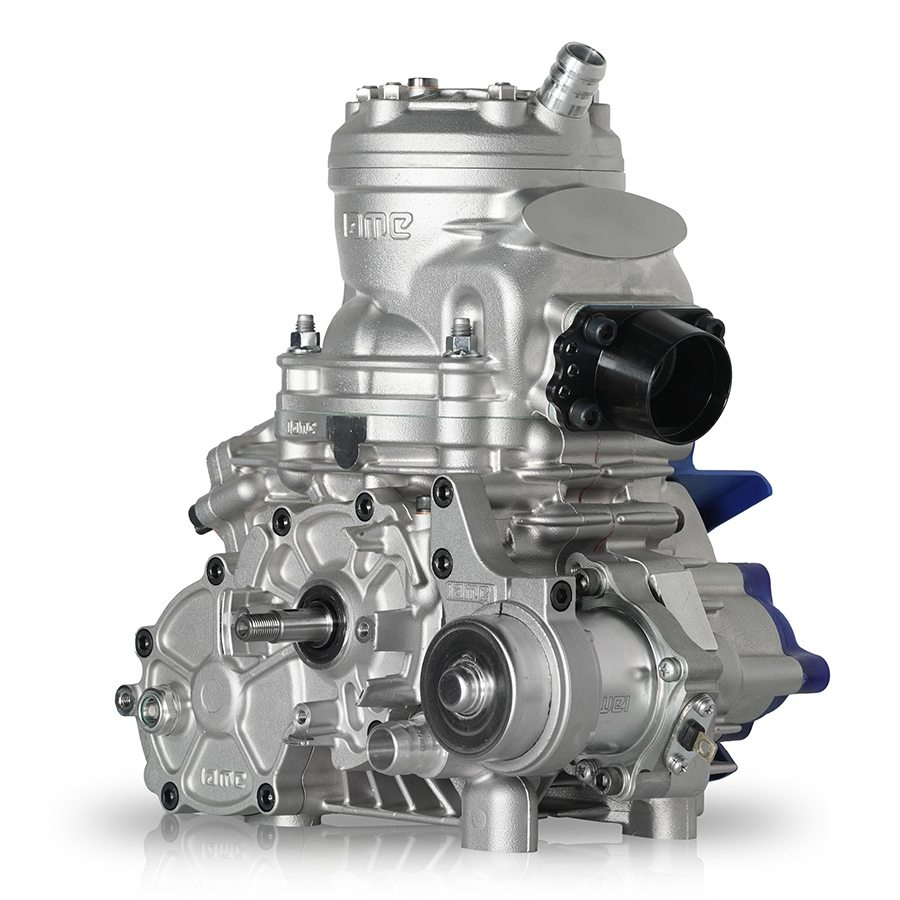

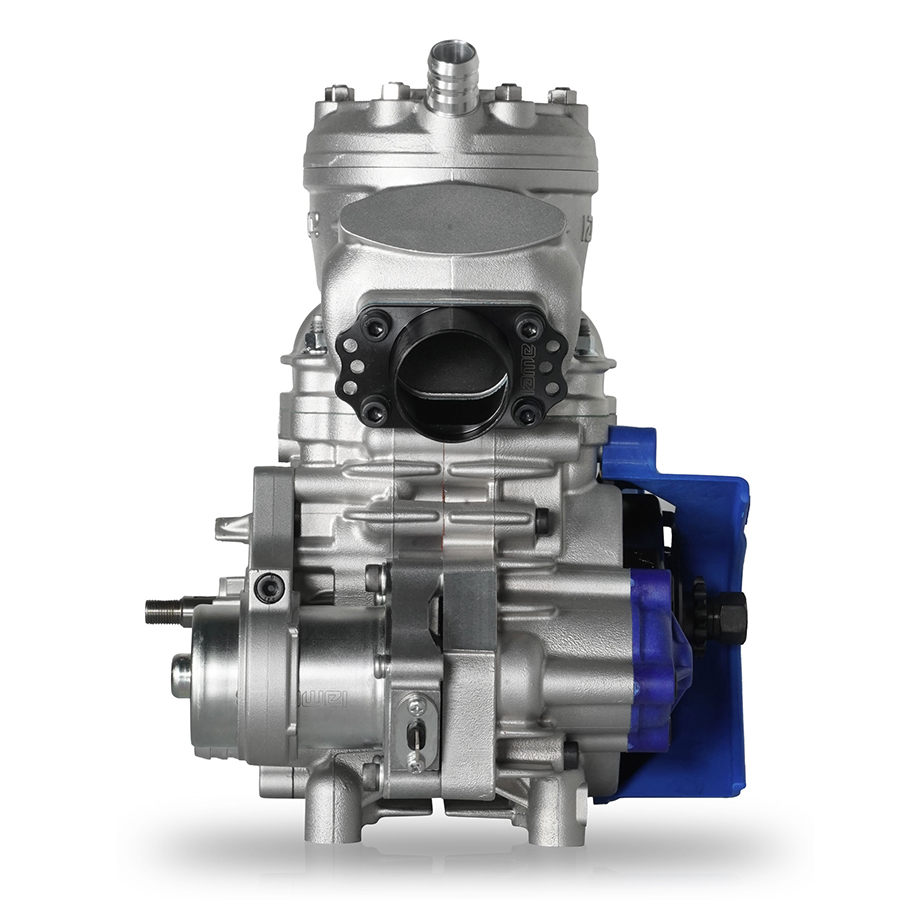

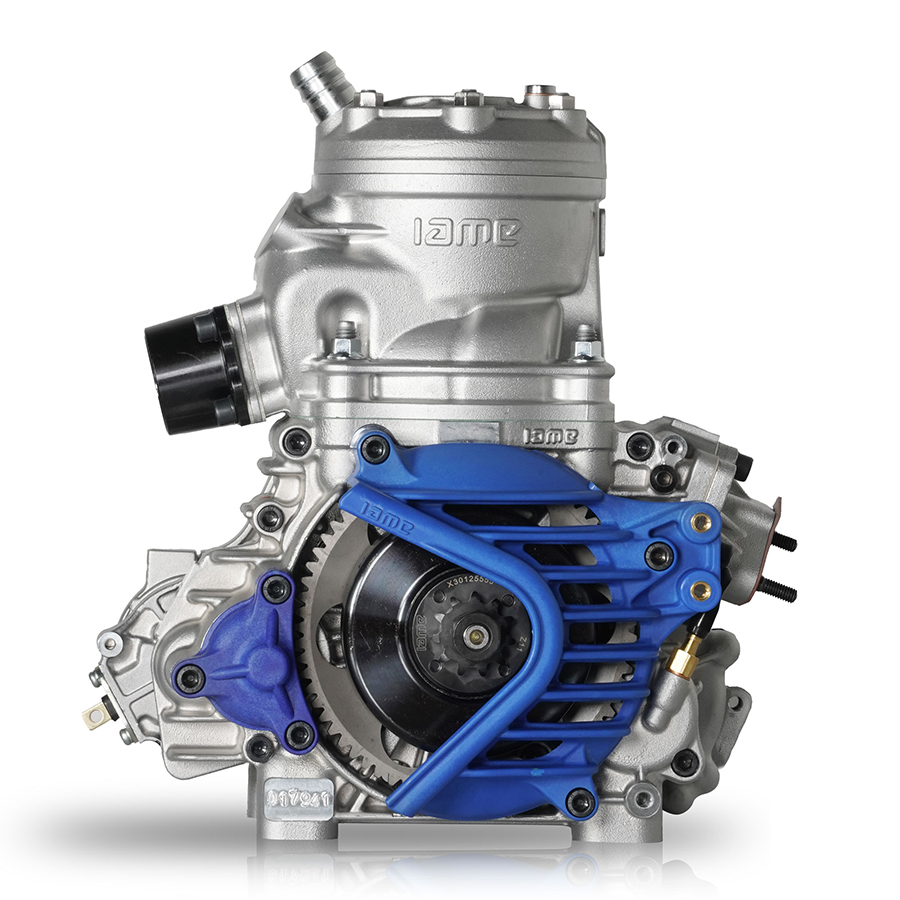

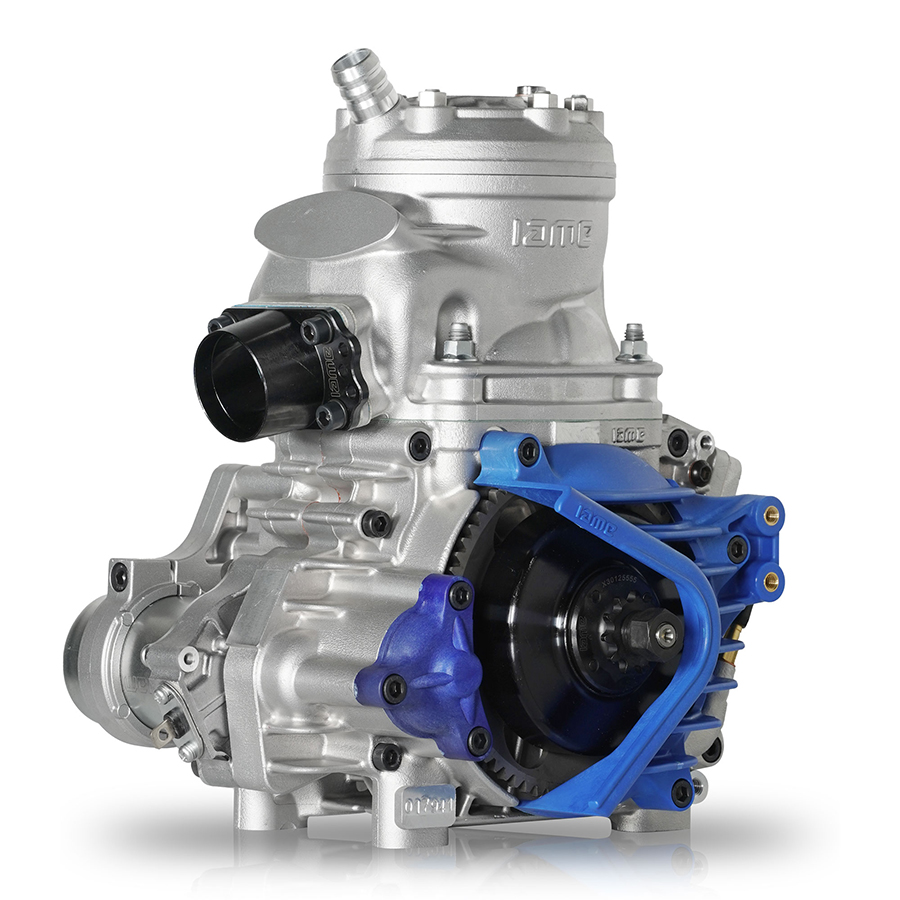

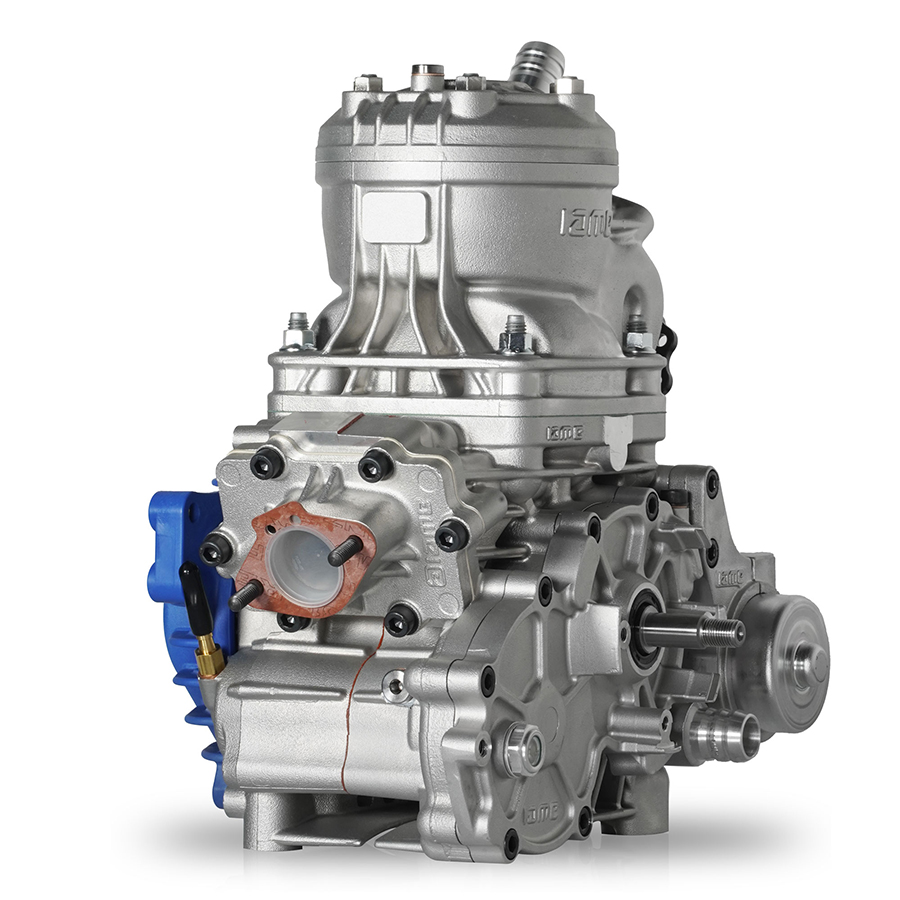

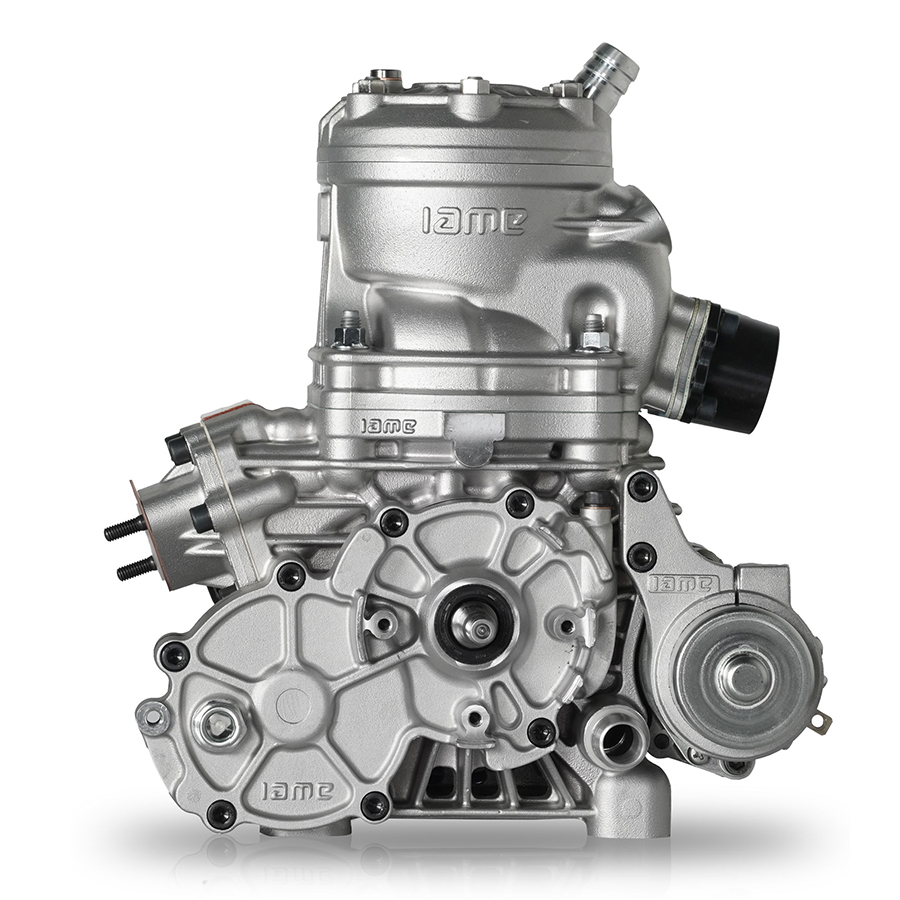

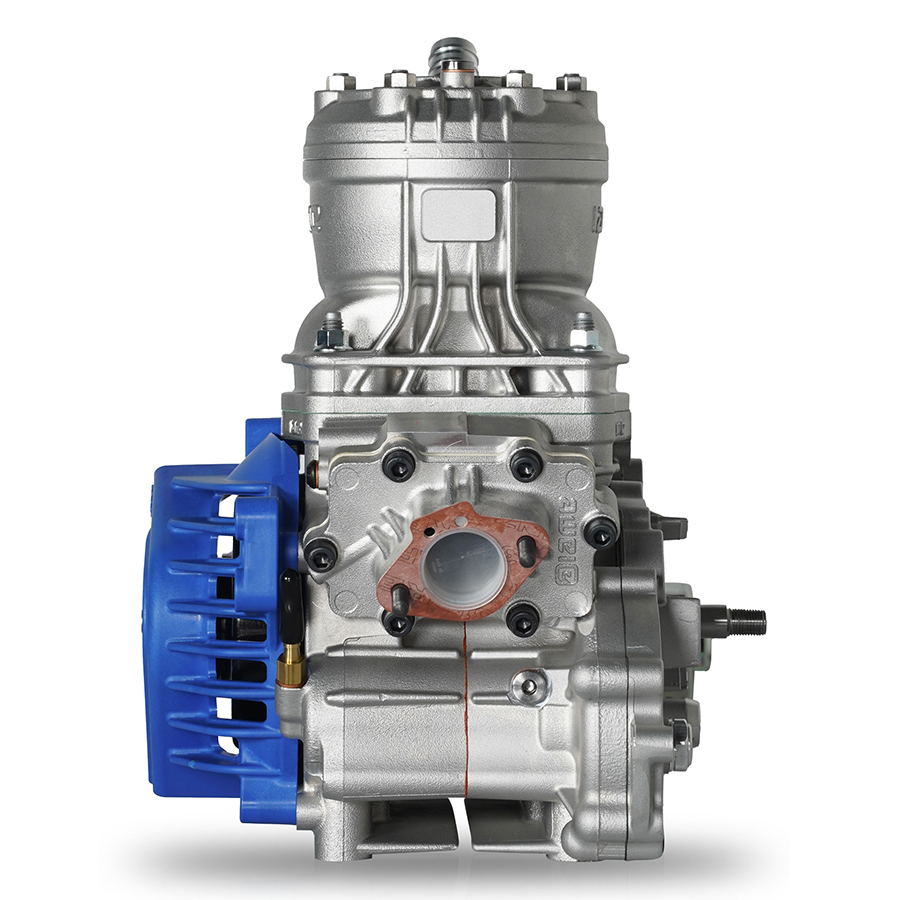

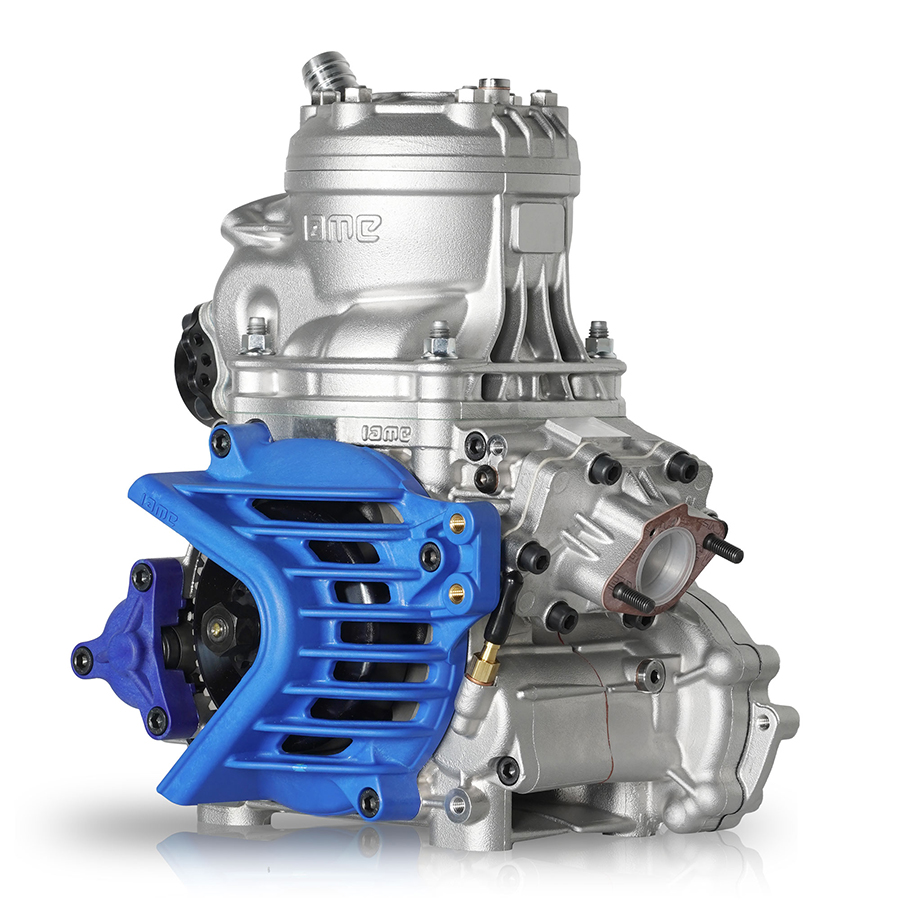

S125 Gallery

S125
S125-2
S125-3
S125-4
S125-5
S125-6
S125-7
S125-8

Technical Specification

Model

s125 - 125cc

Description
Single cylinder – 2 stroke
Class

Senior / Master

Category
125cc
Bore

Ø 53,89mm

Max Bore

Ø 54,08mm

Stroke

54,40mm

Displacement

124,08cc

Ports

5

Balancer Shaft
Present
Inlet System
Reed Valve
Lubrication
Oil Mixture
Ignition System
Digital
Transmission
Centrifugal Dry Clutch
Cooling System
Water
Starter
Electric Start
Carburettor

Tillotson HW-50A

Max Power

37 Hp

Max Torque

23.5 Nm

Max RPM Limit

15,000 RPM
