IAME X30 Senior Engine

The best selling X30 Senior is the most successful blend of innovation and tradition.

Offering modern features such as an electric starter, balancer shaft and water-cooling, while preserving traditional specifications that include the diaphragm carburetor and the absence of the power valve.

All the parts of the X30 engines are manufactured using the latest generation of CNC machines, this translates into extreme manufacturing accuracy of sensitive dimensions. IAME high quality standards guarantee the zeroing of any performance difference among engines with absolute certainty of competing on the track on equal terms.

The result: an engine that is fun to drive, easy to use and long lasting. Pure karting!

X30 Senior Gallery

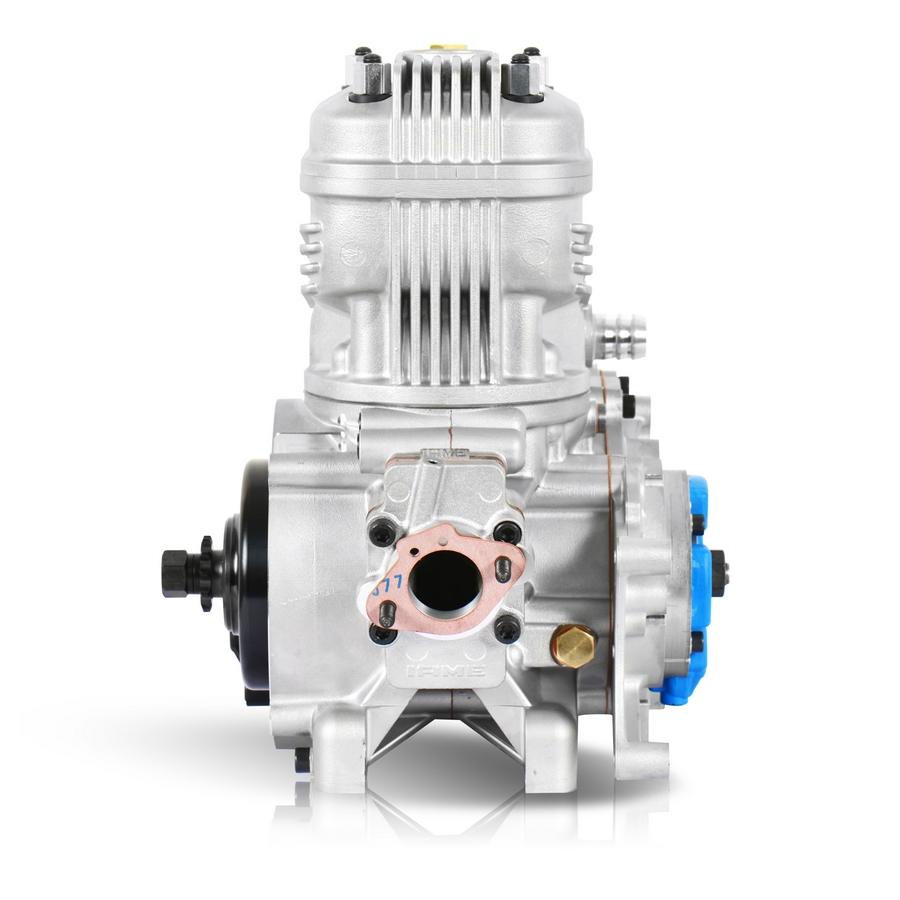

IAME X30 Senior Kart Engine 004

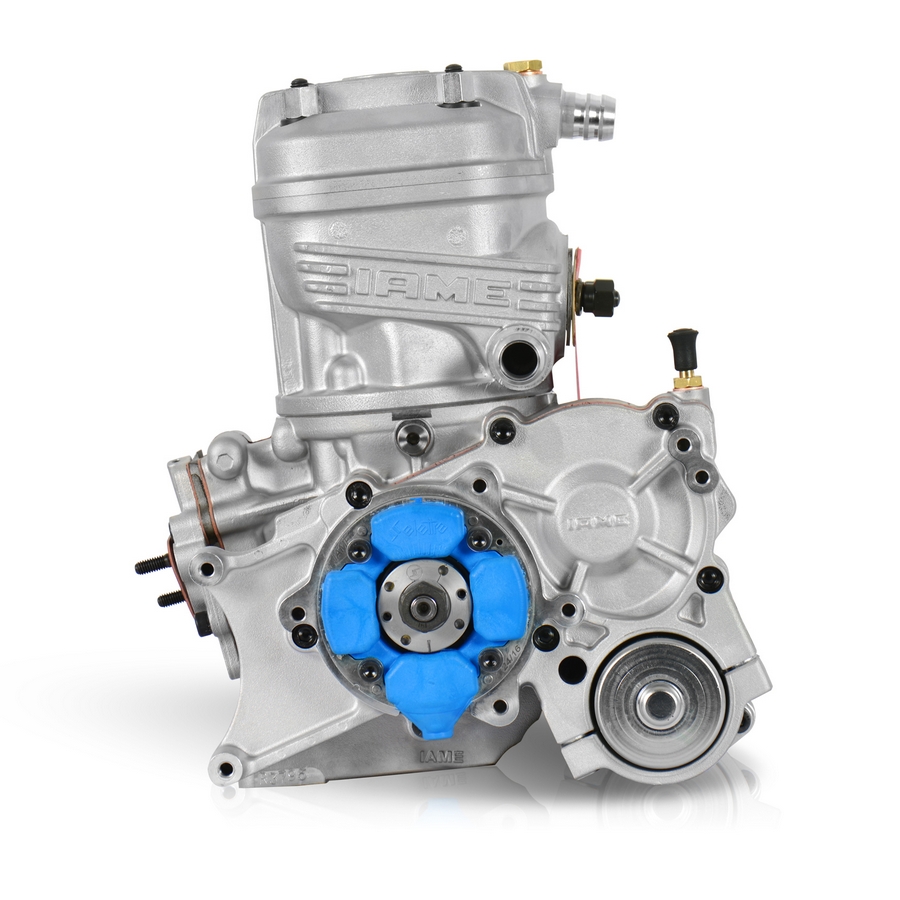

IAME X30 Senior Kart Engine 005

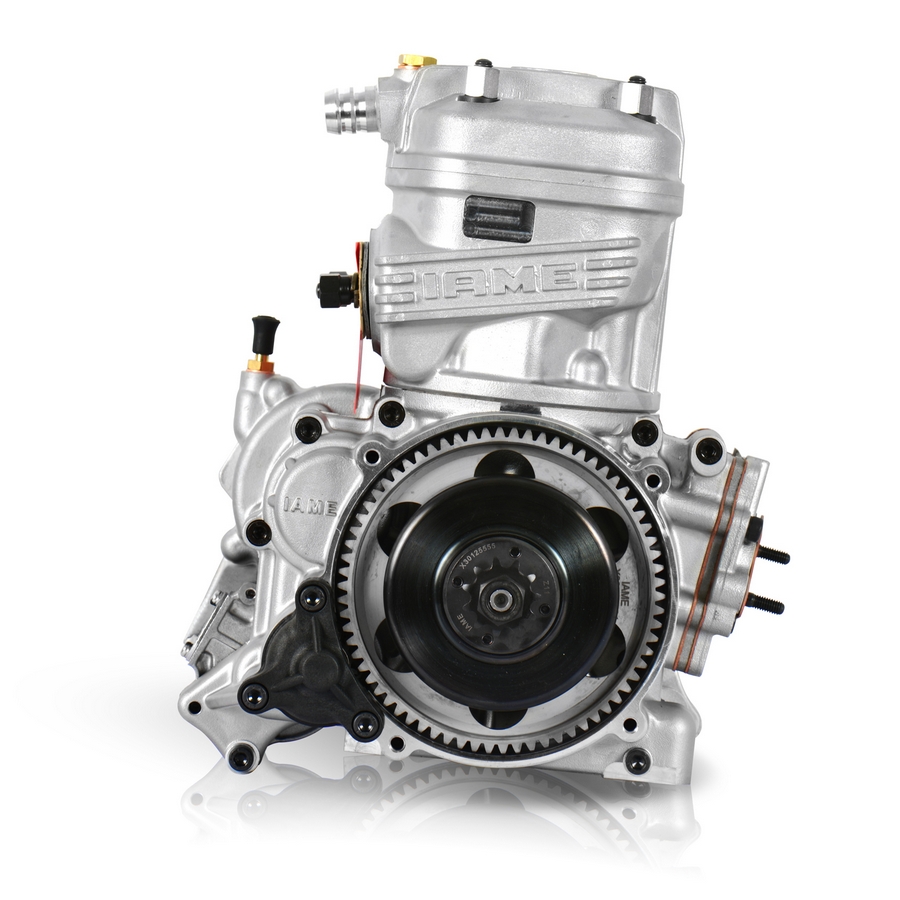

IAME X30 Senior Kart Engine 006

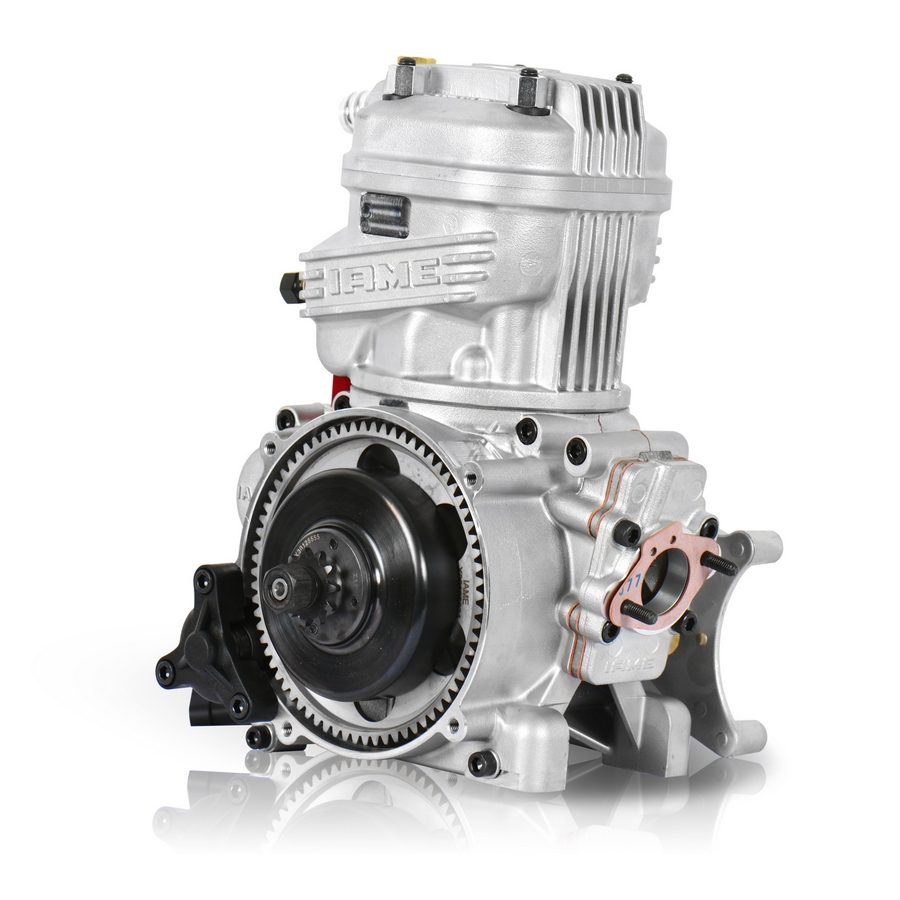

IAME X30 Senior Kart Engine 007

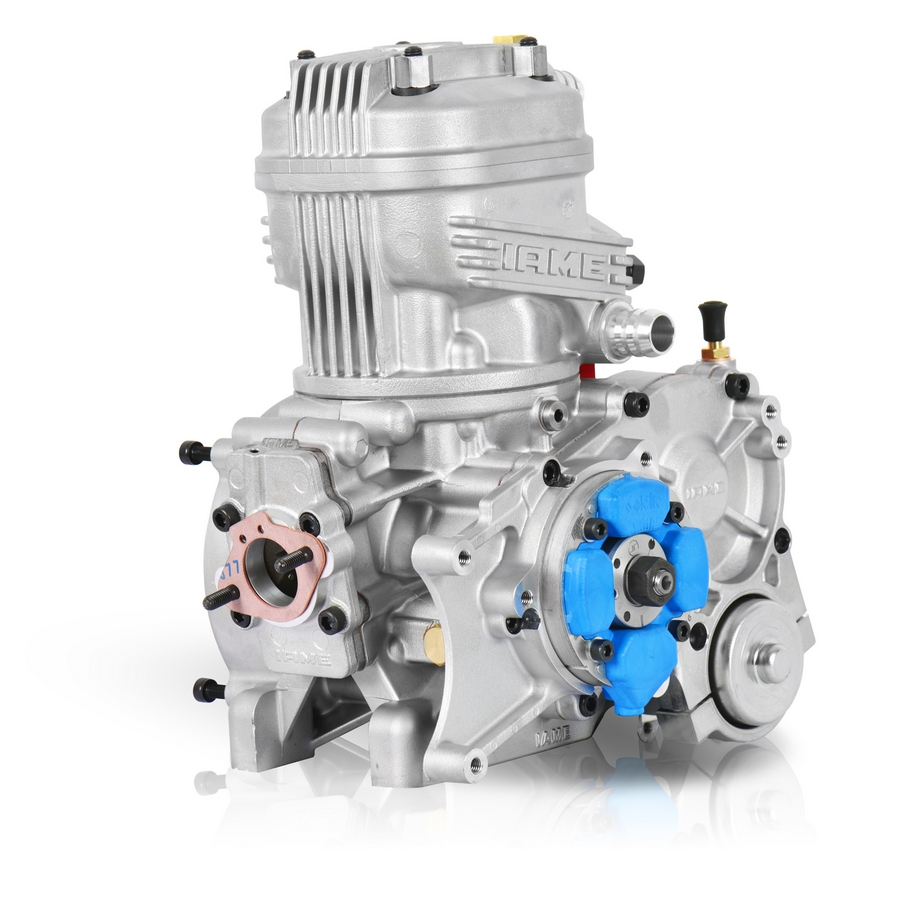

IAME X30 Senior Kart Engine 008

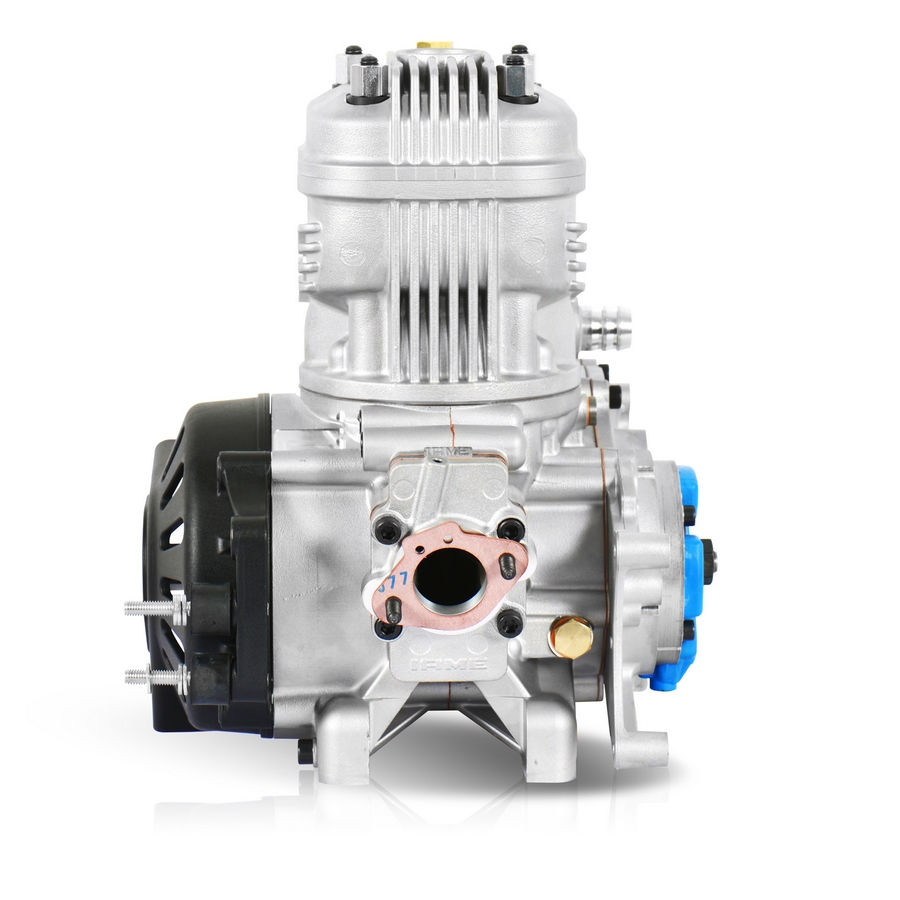

IAME X30 Senior Kart Engine 009

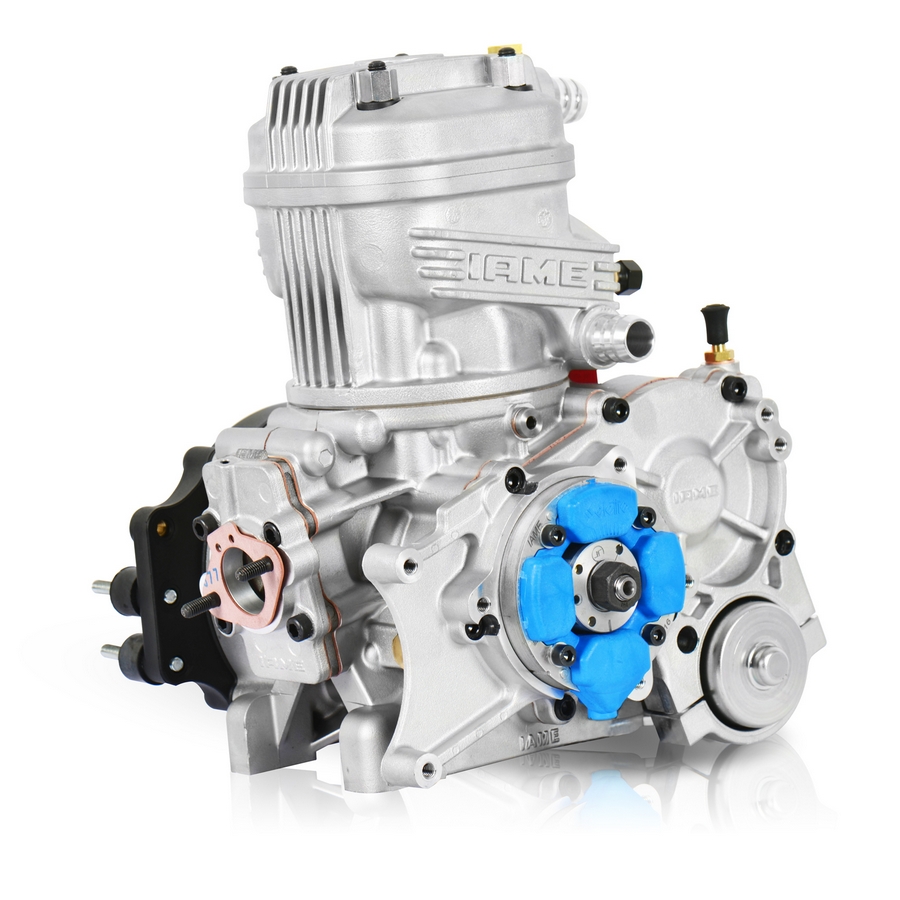

IAME X30 Senior Kart Engine 010

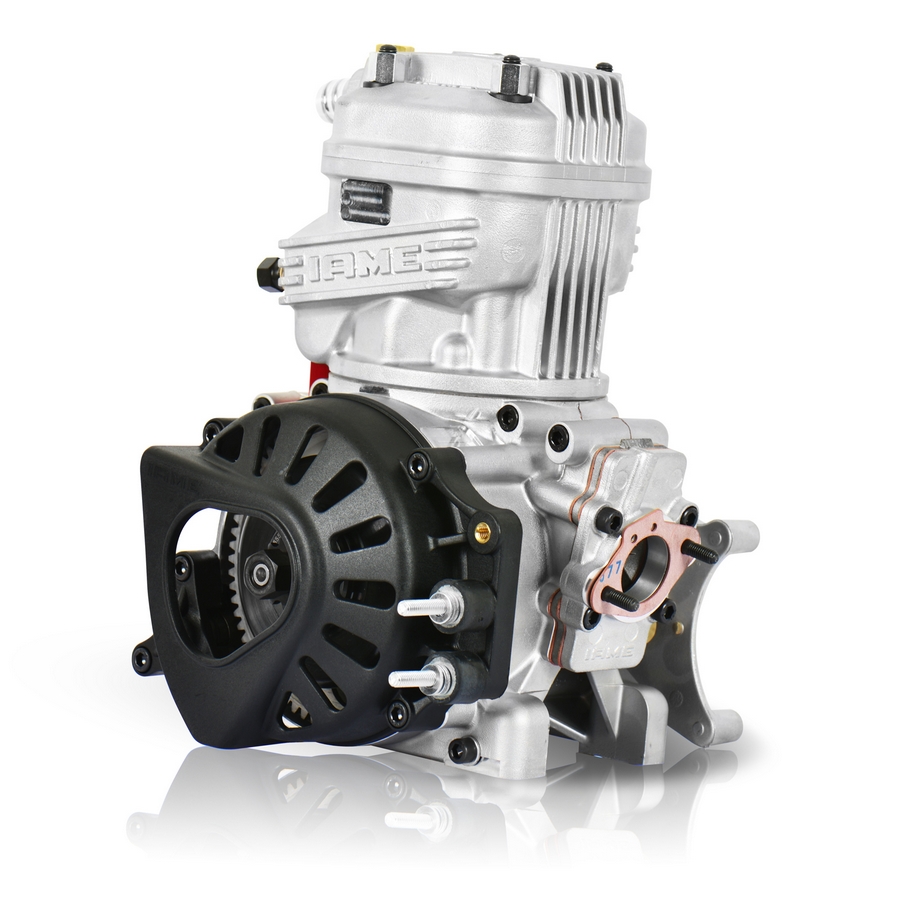

IAME X30 Senior Kart Engine 011

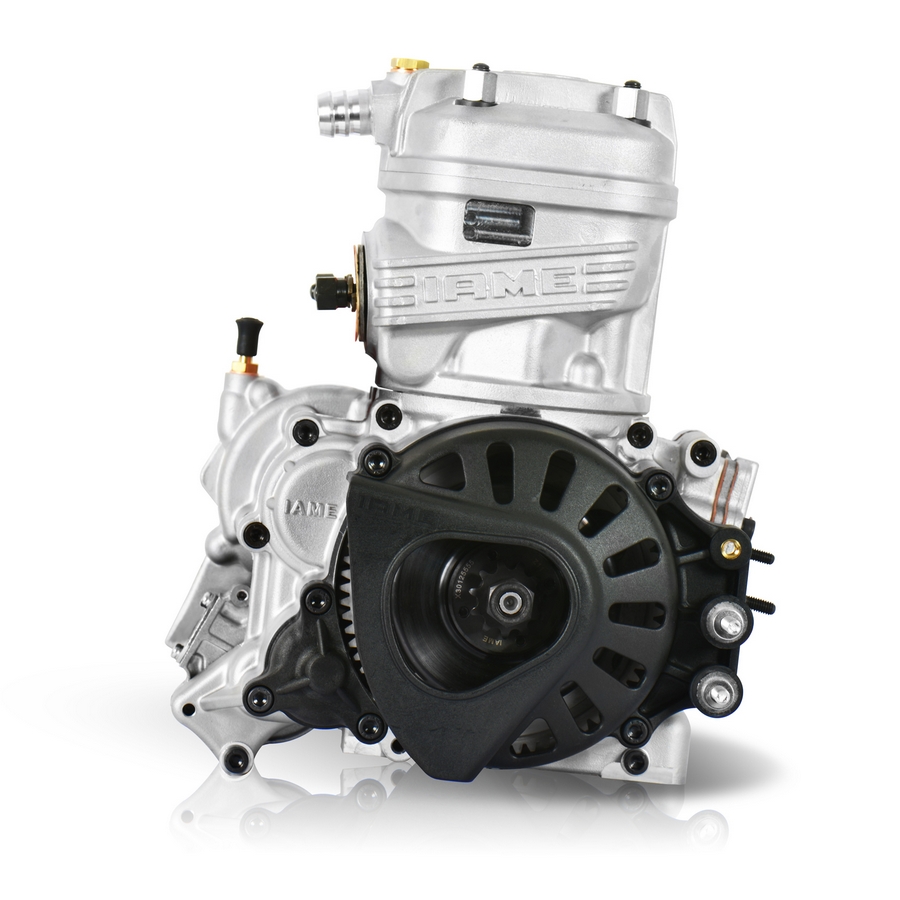

IAME X30 Senior Kart Engine 012

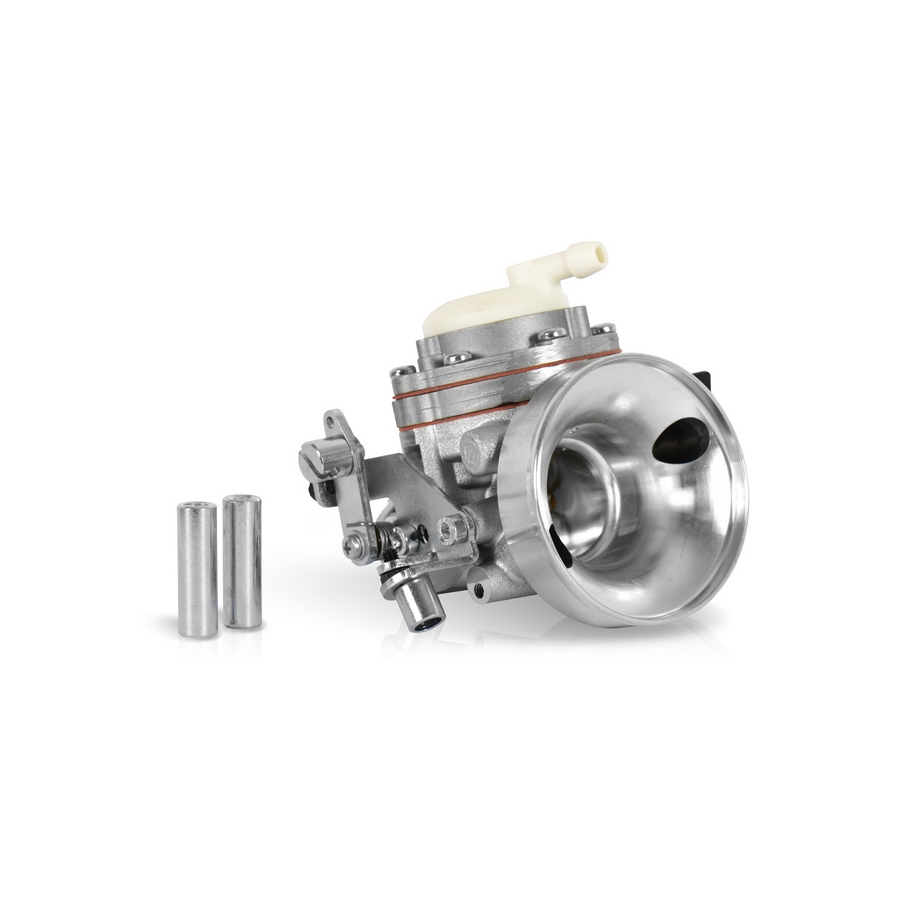

IAME X30 Senior Kart Engine 003

Technical Specification

Model
X30 125cc – Senior
Description
Single cylinder – 2 stroke
Class
X30 Senior
Category
125cc
Bore
Ø 54,00mm
Max Bore
Ø 54,28mm
Stroke
54,00mm
Displacement
123,67cc
Ports
3
Balancer Shaft
Present
Inlet System
Reed Valve
Lubrication
Oil Mixture
Ignition System
Digital
Transmission
Centrifugal Dry Clutch
Cooling System
Water
Starter
Electric Start
Carburettor
Tillotson HW-27A
Max Power
30 Hp
Max Torque
19.5 Nm
Max RPM Limit
16,000 RPM
